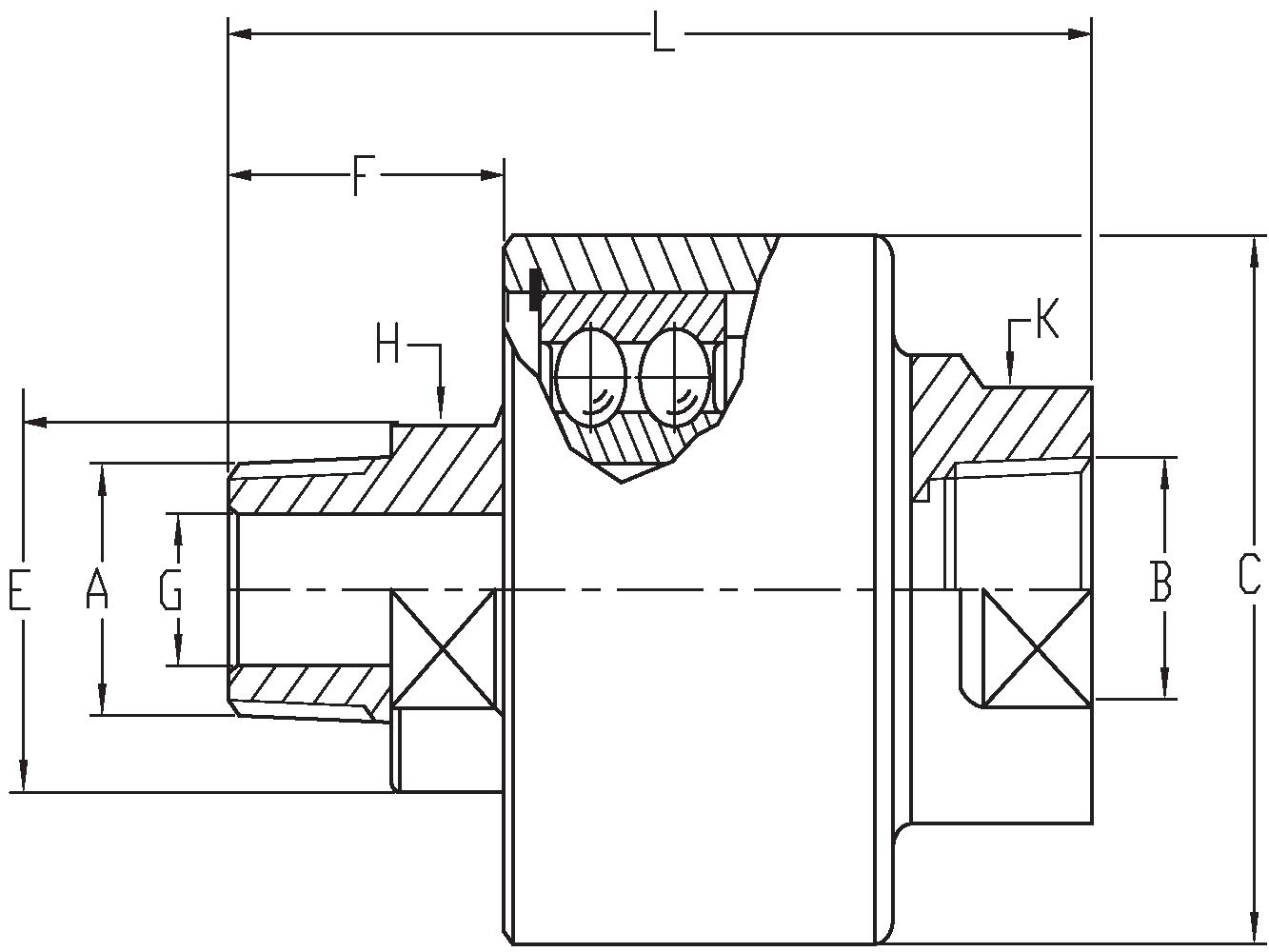

RF-TYPE RBI-TYPE RS-TYPE RM-TYPE RH-TYPE RMF-0911 RB-TYPE RT-TYPE
RL-TYPE XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX

TYPE

A

B

C

E

F

G

H

K

L
RT-014 1/4"RC 1/4"RC 39 21 23 6 17 19 76
RT-038 3/8"RC 3/8"RC 42 23 25 8 19 21 78
RT-012 1/2"RC 1/2"RC 56 32 30.5 12 26 32 95.5
RT-034 3/4"RC 3/4"RC 63 37 31.5 15 32 36 100.5
RT-100 1"RC 1"RC 86 47 37 22 41 46 121
RT-114 1-1/4"RC 1-1/4"RC 93 55 43 26 50 55 135
RT-112 1-1/2"RC 1-1/2"RC 102 62 43 30 55 65 138
RT-200 2"RC 2"RC 117 72 51 40 65 80 158

最大油壓壓力(Max.Hydraulic)

最大空氣壓力(Max.air)

最大轉速(Max.RPM)

最大溫度(Max.Temp)
150 BAR(50RPM) 10 BAR 850(30 BAR) 100℃

標準材質

 Standard Materials Service

轉軸---合金鋼

 Shaft---alloy steel

外殼---合金鋼

 Housing---alloy steel

標轉螺紋---RC

 Standard Threads---RC

*產品編號會依需求不同而變動(Product labels will change according to different needs)

*如有特殊規格請聯絡本公司(For special specifications please contact the company)
