RF-TYPE RBI-TYPE RS-TYPE RM-TYPE RH-TYPE RMF-0911 RB-TYPE RT-TYPE
RL-TYPE XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX

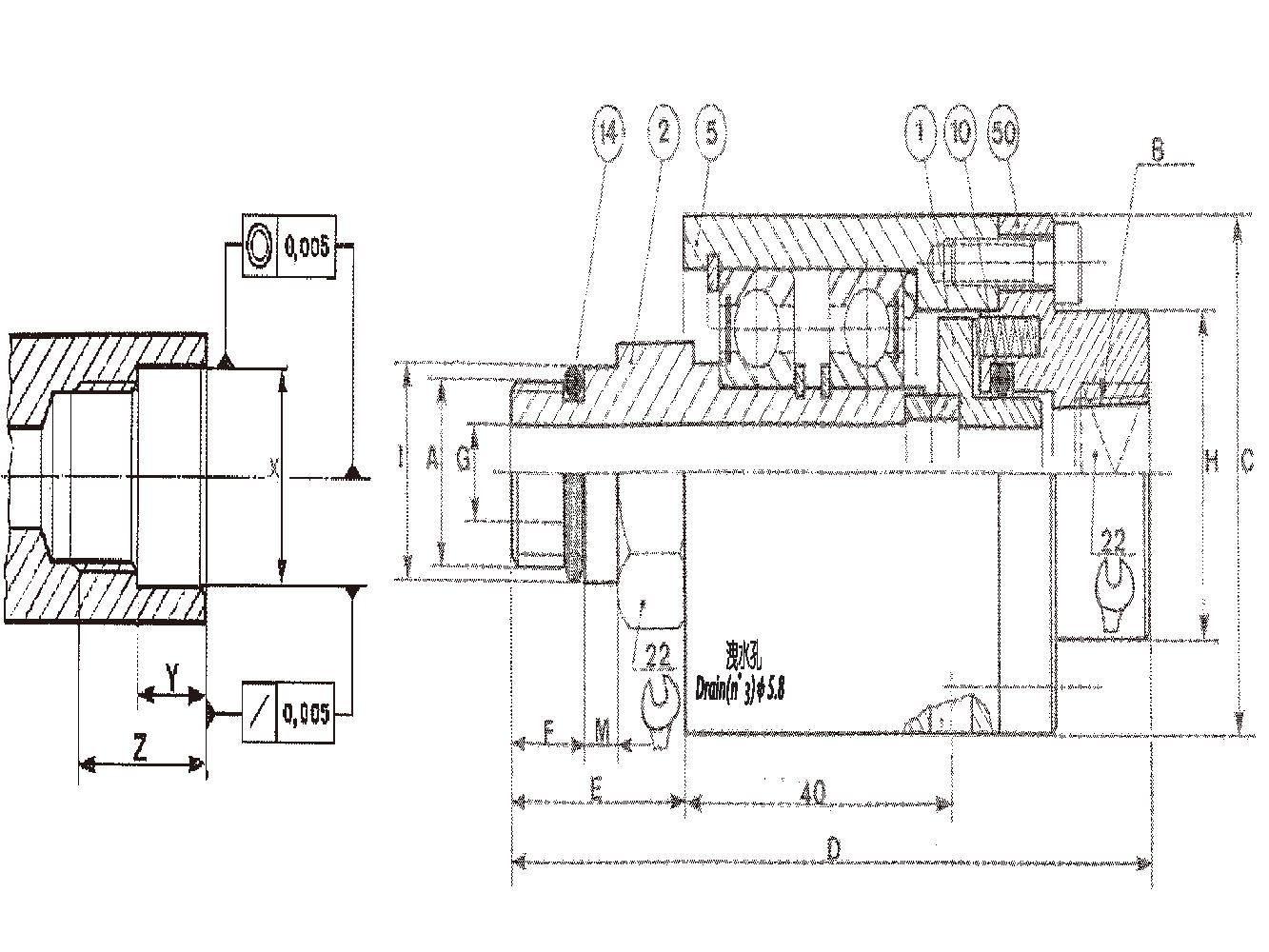

TYPE

A

B (RC)

C

D

E

F
RSB28U05R02N3 5/8-18UNF RH 3/8 44 105 29.5 14
RSB28U05L02N3 5/8-18UNF LH 3/8 44 105 29.5 14
RSB28M16L04N3 M16XP1.5 LH 3/8 44 102 26.5 11

G

I

M

X

Y

Z

Weight(kg)
8.5 16.650-16.645 5 16.652-16.662 9 21 0.3
8.5 16.650-16.645 5 16.652-16.662 9 21 0.3
8.5 17.994-17.983 5 17.997-18.007 9 18 0.3

壓力 Pressurs (BAR)

工作溫度 Temperature (℃)

轉速 RPM

流量 Flow Rote (1/1`)
100 120 15,000 28

材質

 Materials

轉軸[2]-固定環 [1]:不銹鋼

 Rotor(2)-Stationary Ring(1):Stainless Steel

外殼[5-50]:鋁合金

 Support(5-50) Anodised aluminium

密封面材質:碳化鎢對碳化鎢

 Faces materials:Tungsten Carbide vs Tungsten Carbide

襯墊 [10-14] :O型環

 Gasket (10-14) : O Ring

*產品編號會依需求不同而變動(Product labels will change according to different needs)

* 如有特殊規格請聯絡本公司(For special specifications please contact the company)
