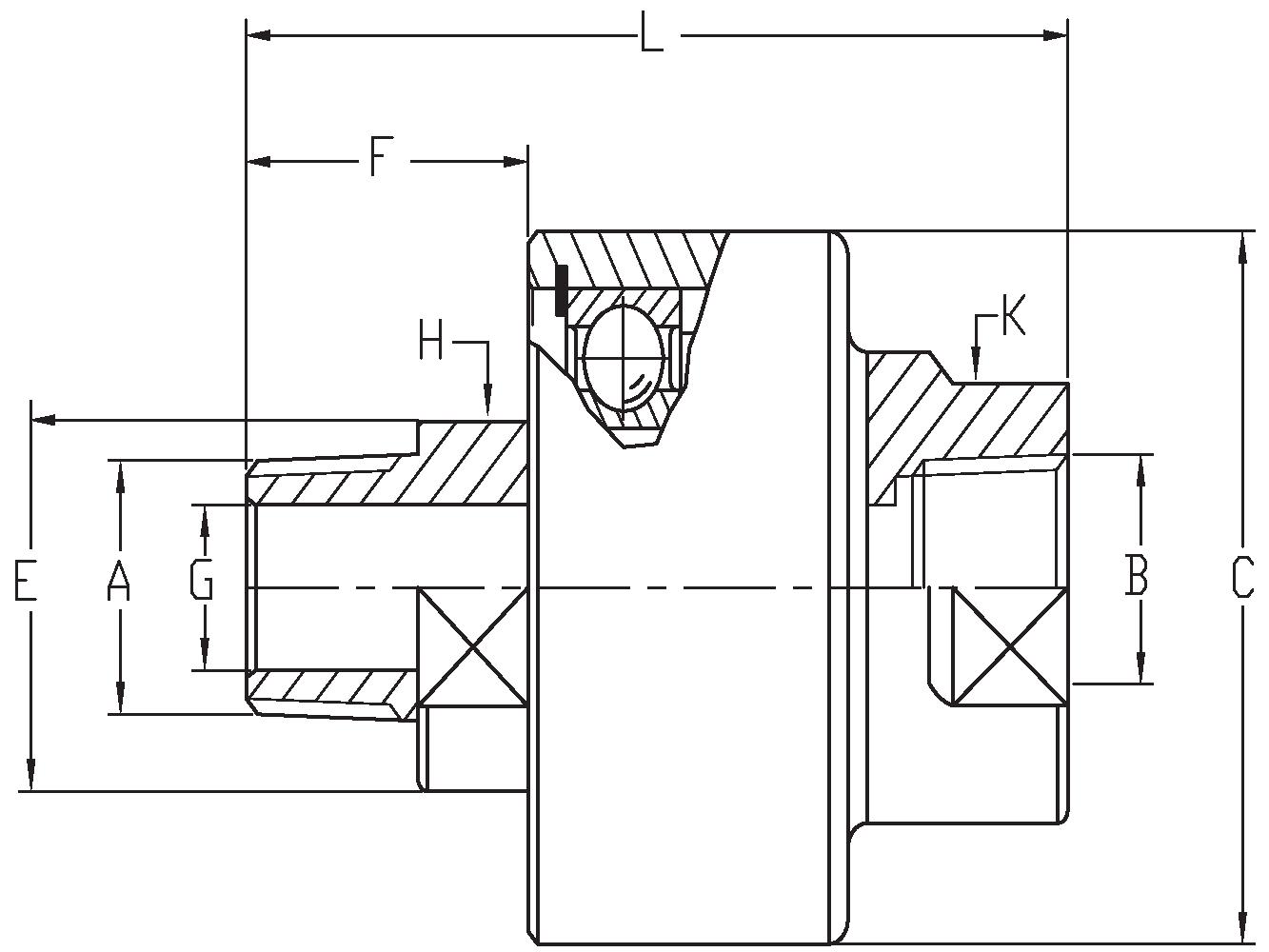

RF-TYPE RBI-TYPE RS-TYPE RM-TYPE RH-TYPE RMF-0911 RB-TYPE RT-TYPE
RL-TYPE XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX

TYPE

A

B

C

E

F

G

H

K

L
RS-014 1/4"RC 1/4"RC 39 21 22 8 17 19 68
RS-038 3/8"RC 3/8"RC 42 23 23 10 19 21 70
RS-012 1/2"RC 1/2"RC 56 32 29.5 13 26 32 86
RS-034 3/4"RC 3/4"RC 66 37 30.5 16 32 36 92
RS-100 1"RC 1"RC 82 47 36 24 41 46 108
RS-114 1-1/4"RC 1-1/4"RC 93 57 42 30 50 55 120
RS-112 1-1/2"RC 1-1/2"RC 112 68 42 36 60 70 125
RS-200 2"RC 2"RC 117 74 50 46 65 80 142

最大油壓壓力(Max.Hydraulic)

最大空氣壓力(Max.air)

最大轉速(Max.RPM)

最大溫度(Max.Temp)
150 BAR(50RPM) 10 BAR 850(30 BAR) 100℃

*產品編號會依需求不同而變動(Product labels will change according to different needs)

*如有特殊規格請聯絡本公司(For special specifications please contact the company)
