RF-TYPE RBI-TYPE RS-TYPE RM-TYPE RH-TYPE RMF-0911 RB-TYPE RT-TYPE
RL-TYPE XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX

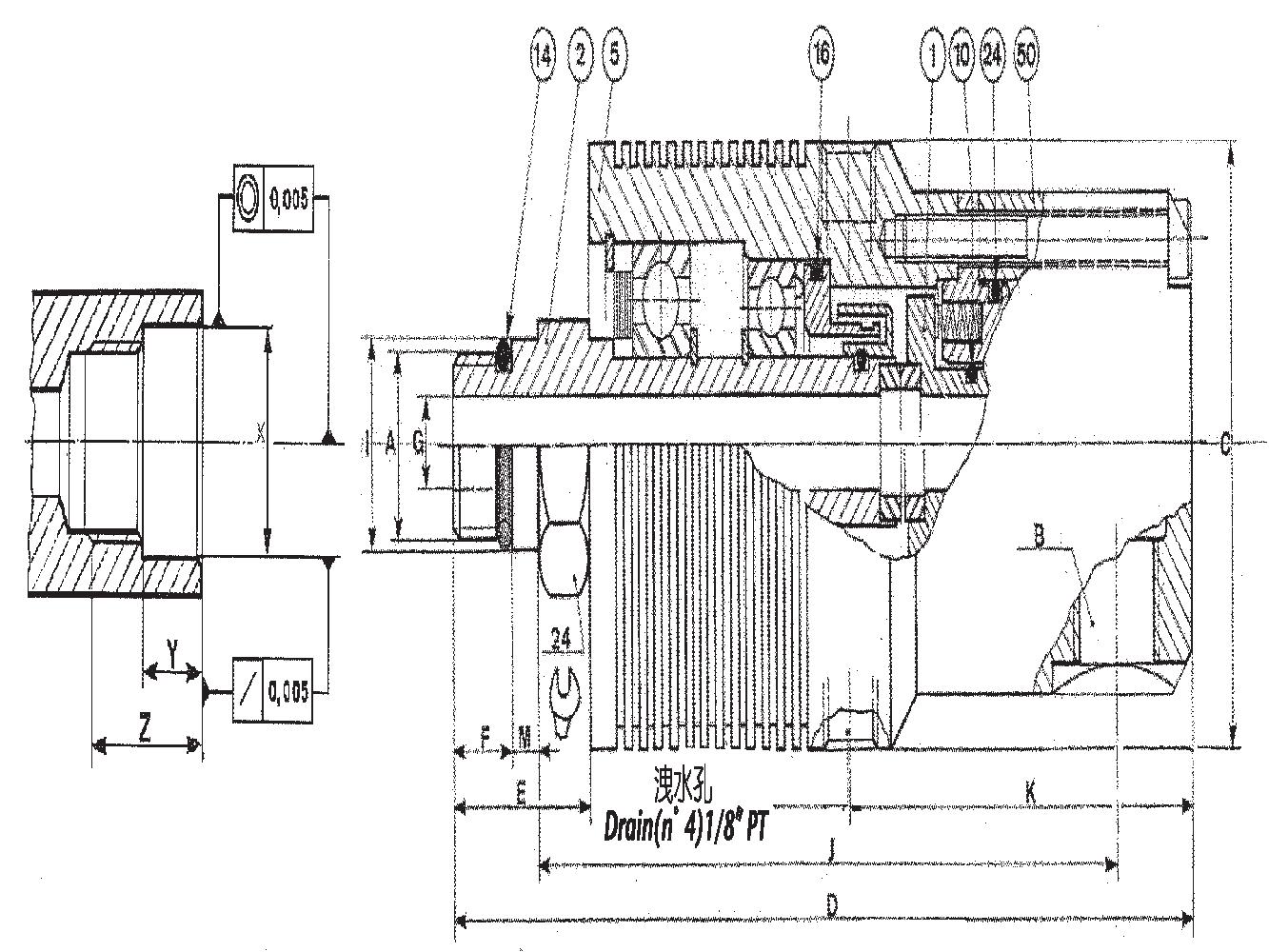

TYPE

A

B(RC)

C

D

E

F

G
RHF08U05L05N2 5/8-18UNF LH 1/4"NPT 53 144 29 14 8.5
RHF08M16L06R2 M16XP1.5 LH RP1/4"ISO7/1 53 141 26 11 8.5

I

J

M

X

Y

Z

K

(KG)
16.650-16.645 111 5 16.652-16.662 9 21 65 0.6
17.994-17.983 111 5 17.997-18.007 9 18 65 0.6

壓力 (BAR)

工作溫度 (℃)

轉速(RPM)

流量 (Flow Rote)
105 120 15,000 8

材質

 Materials

轉軸[2]-固定環[1]；不鏽鋼

 Rotor(2)-Stationary Ring(1)；Stainless Steel

外殼[5-50]；鋁合金

 Support(5-50) Anodised aluminium

密封面材質；碳化鎢對碳化鎢

 Faces materials； Tungsten Carbide vs Tungsten Carbide

襯墊[10-14-16-24]；O型環

 Gasket (10-14-16-24)；O Ring

*產品編號會依需求不同而變動(Product labels will change according to different needs)

*如有特殊規格請聯絡本公司(For special specifications please contact the company)
