RF-TYPE RBI-TYPE RS-TYPE RM-TYPE RH-TYPE RMF-0911 RB-TYPE RT-TYPE
RL-TYPE XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX

TYPE

A

B

C

D

E

F

G

I

M

X

Y

Z
RH-U05LN3 5/8-18UNF LH 3/8NPT 46 120 29.5 14 8.5 16.650-16.645 5 16.652-16.662 9 21
RH-U05RN3 5/8-18UNF RH 3/8NPT 46 120 29.5 14 8.5 16.650-16.645 5 16.652-16.662 9 21
RH-M16LN3 M16XP1.5 LH 3/8NPT 46 117 26.5 11 8.5 17.994-17.983 5 17.997-18.007 9 18

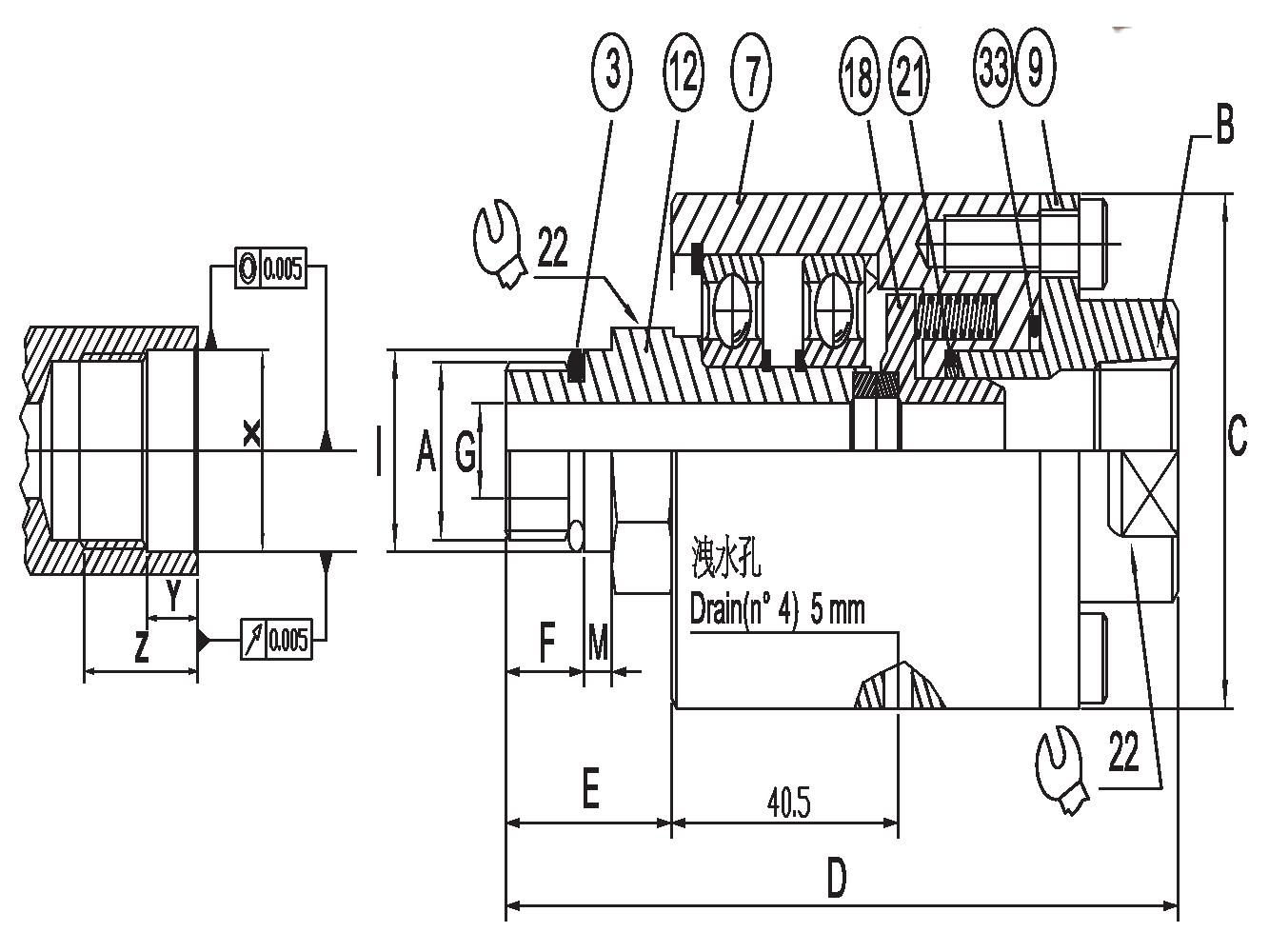

最大使用壓力(Max.Hydraulic Pressure)

最大使用溫度(Max.Temperature)

最高使用轉速(Max.Speed)
160 BAR 120℃ 12,000 RPM

材質

 Materials

3

 O-型環(O-Ring)

12

 轉軸-不銹鋼(Rotor-Stainless Steel)

7

 外殼-合金鋼(Support-Alloy Steel)

8

 推做-不銹鋼(Stationary Ring-Stainless Steel)

21

 密封圈(Seal Ring)

33

 O-型環(O-Ring)

9

 後蓋-合金鋼(Support-Alloy Steel)
密封面材質碳化鎢對碳化鎢(Faces Materials：Tungsten Carbide Vs Tungsten Carbide)

*產品編號會依需求不同而變動(Product labels will change according to different needs)

*如有特殊規格請聯絡本公司(For special specifications please contact the company)
