RF-TYPE RBI-TYPE RS-TYPE RM-TYPE RH-TYPE RMF-0911 RB-TYPE RT-TYPE
RL-TYPE XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX
有襯套 無襯套

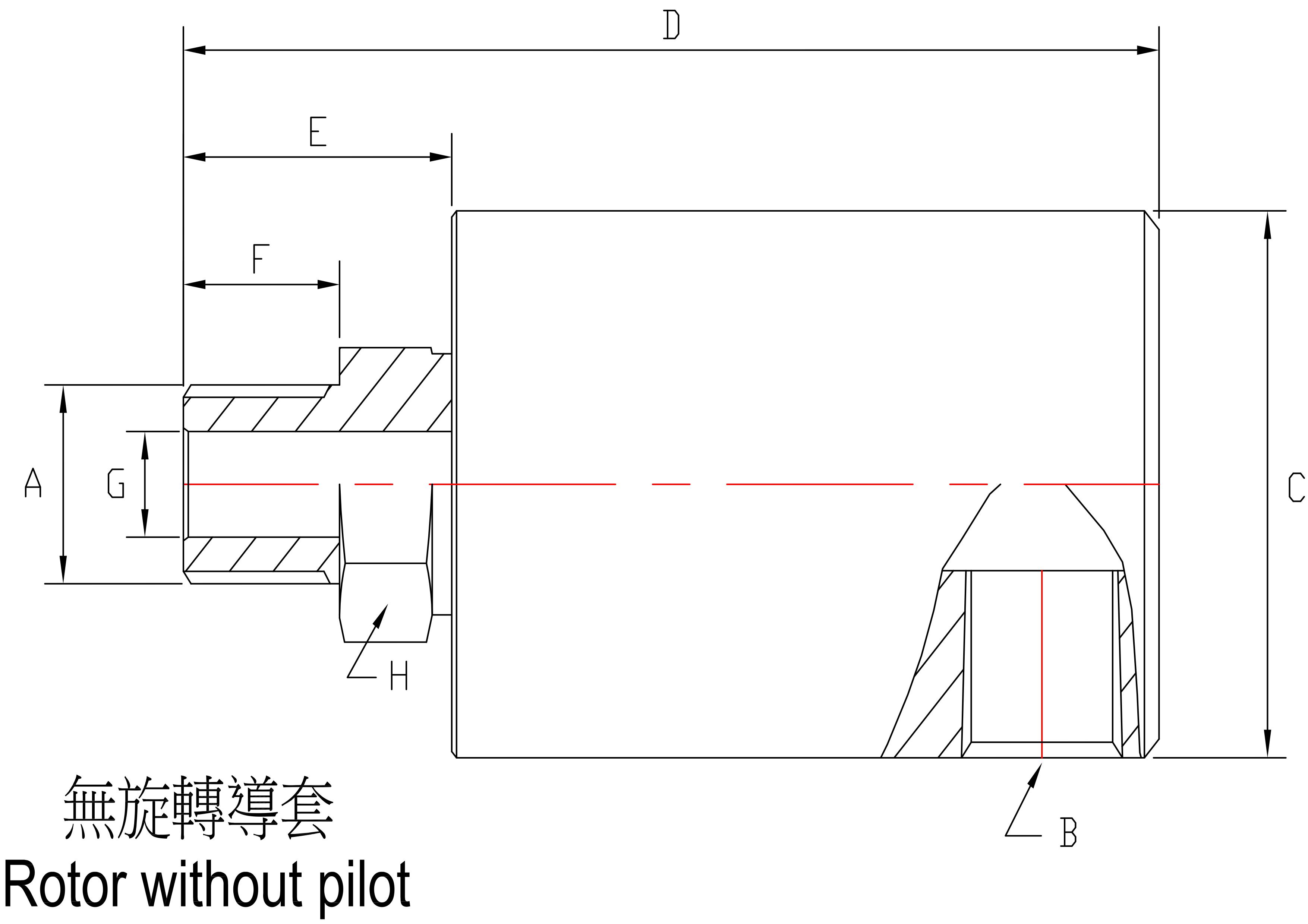

TYPE

A

B(RC)

C

D

E

F

G

H

weight (KG)

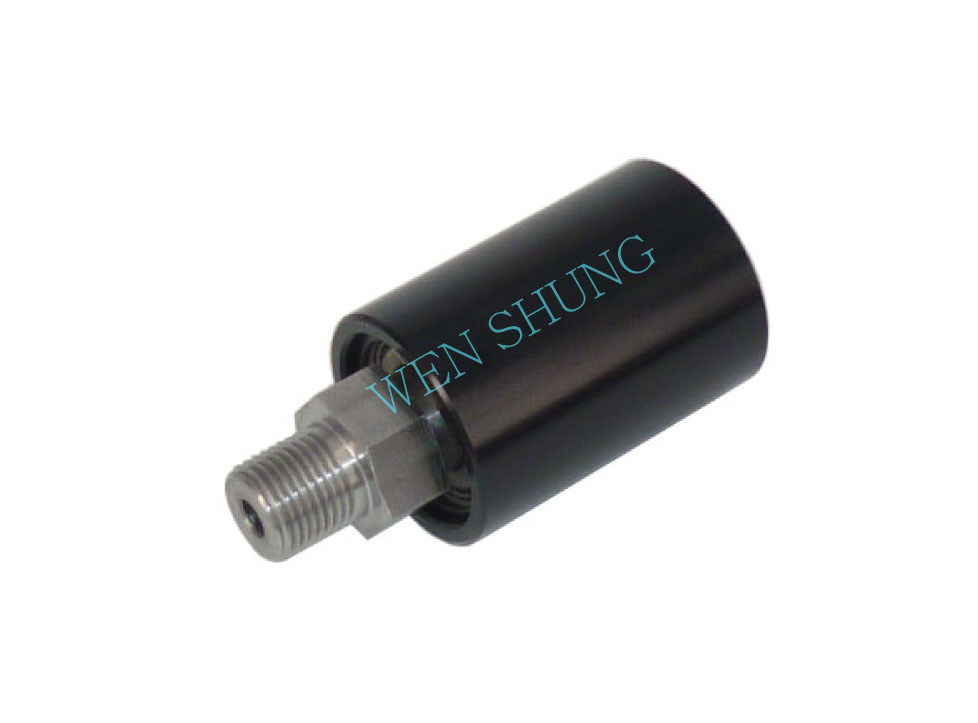

RF08U05L01N2 5/8-18UNF LH 1/4 39 84 25 16 6.5 22 0.5
RF08U05R01N2 5/8-18UNF RH 1/4 39 84 25 16 6.5 22 0.5
RF08M16L01N2 M16XP1.5 LH 1/4 39 84 25 16 6.5 22 0.5
RF08M16R01N2 M16XP1.5 RH 1/4 39 84 25 16 6.5 22 0.5
RF08R014N2R RC-1/4PT-19 1/4 39 84 25 16 6.5 22 0.5
RF08G014N2R RC-1/4PS-19 1/4 39 84 25 16 6.5 22 0.5

流體(Fluid)

轉軸(Rotor)

壓力(BAR)

工作溫度(℃)

轉速(RPM)
空氣/水 air/water 無襯套without pilot 10 120 * *
液壓油 hydraulicoil 無襯套without pilot 105 120 6.000

*產品編號會依需求不同而變動(Product labels will change according to different needs)

* 如有特殊規格請聯絡本公司(For special specifications please contact the company)
