RF-TYPE RBI-TYPE RS-TYPE RM-TYPE RH-TYPE RMF-0911 RB-TYPE RT-TYPE
RL-TYPE XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX

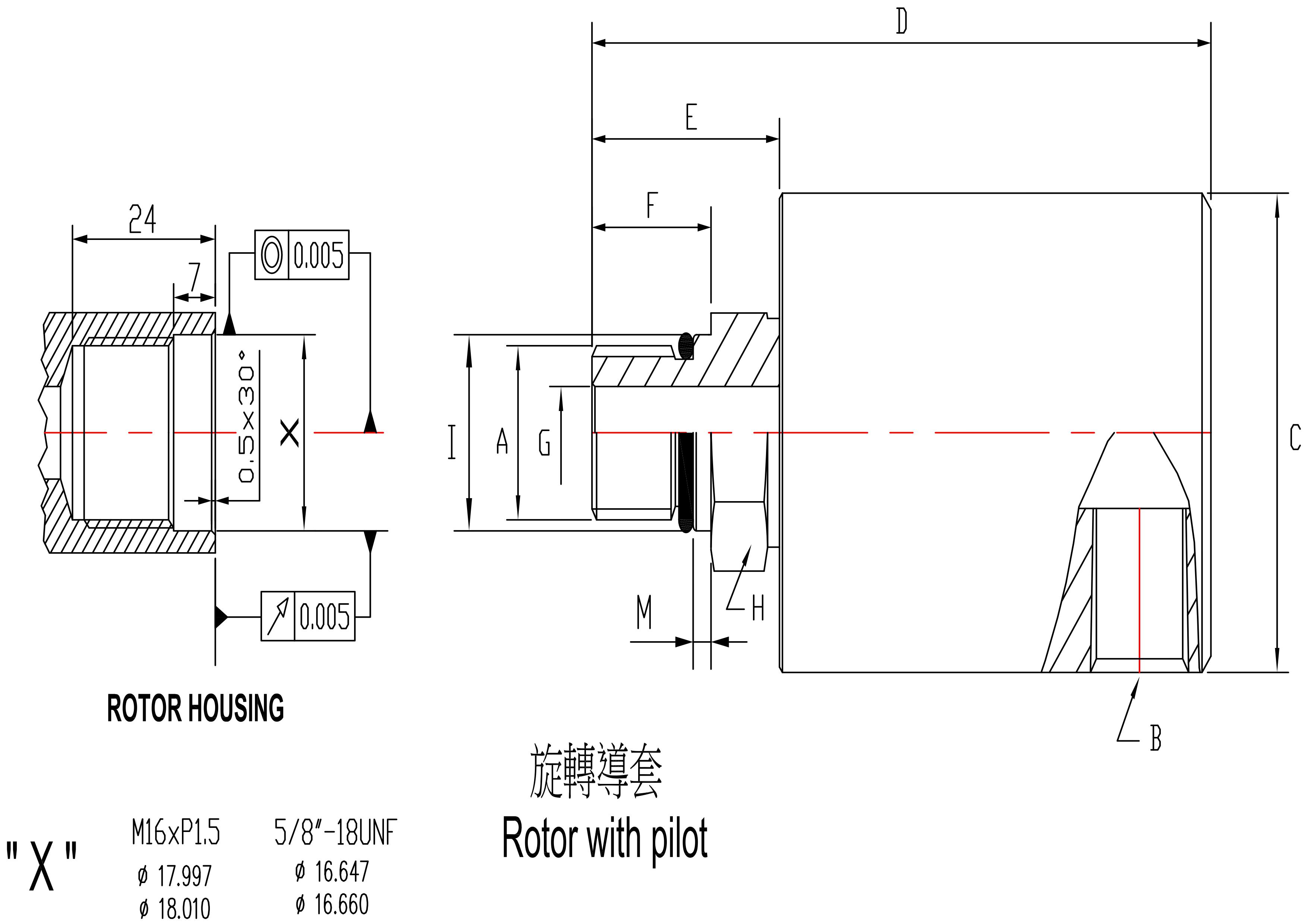

有襯套 無襯套

TYPE

A

B(RC)

C

D

E

F

G

H

J

I

M

weight (KG)
RF08U05LP01N2 5/8-18UNF LH 1/4 39 88 29 20 6.5 22 59 16.65+0.00-0.015 3 0.55
RF08U05RP01N2 5/8-18UNFRH 1/4 39 88 29 20 6.5 22 59 16.65+0.00-0.015 3 0.55
RF08M16LP01N2 M16XP1.5 LH 1/4 39 88 29 20 6.5 22 59 18.0+0.00-0.015 3 0.55
RF08M16RP01N2 M16XP1.5 RH 1/4 39 88 29 20 6.5 22 59 18.0+0.00-0.015 3 0.55

流體(Fluid)

轉軸(Rotor)

壓力(BAR)

工作溫度(℃)

轉速(RPM)
空氣/水 air/water 有襯套 with pilot 10 120 * *
液壓油 hydraulicoil 有襯套 with pilot 105 120 6.000

*產品編號會依需求不同而變動(Product labels will change according to different needs)

* 如有特殊規格請聯絡本公司(For special specifications please contact the company)
